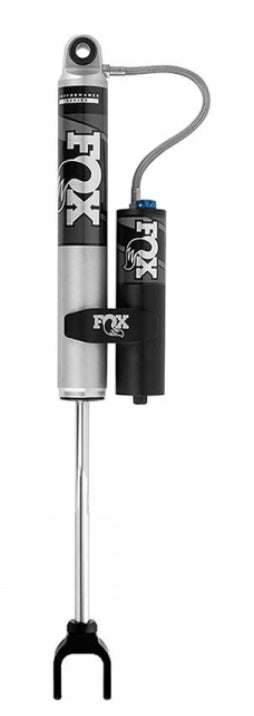

Fox 2.0 Performance Series Adjustable Reservoir Shock-2011-2019 GM 2500HD/3500HD 2WD/4WD (Front)

Fox 2.0 Performance Series Adjustable Reservoir Shock for your 2011-2019 GM 2500HD/3500HD 2WD/4WD Front Lifted 7"-9" Duramax diesel. Its heat reducing design includes metal impacted clear aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. Included CD Adjuster delivers 8 clicks of compression adjustability-from very soft to very firm. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series Reservoir shock a predictable ride quality capable of handling the roughest road conditions.

Highlights:

• Body: 2.0" Metal impacted 6061-T6 Aluminum will resist rust over time
• Body Plating: Clear anodized for a durable finish
• Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from high-pressure nitrogen
• Components: Black anodizes, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved Performance at variable temperatures.
• Bushings: Quite nitrile rubber allows for increased suspension articulation.
• Mounting: Direct replacement for stock and aftermarket lift kits.

Specs:

Ext. Length: 25.809

Col. Length: 16.369

Travel: 9.440

Top Mount: Bar Pin

Bottom Mount: Clevis

Vehicle Fitment:

2011-2019 GM 2500HD/3500HD 2WD/4WD Front Lifted 7"-9"

Note:

Shock Absorbers Sold Individually.

This shock features a lower clevis mount. Please check and confirm that your application uses this style mount before ordering.

7"-9" Lift is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application
